Série K étanche

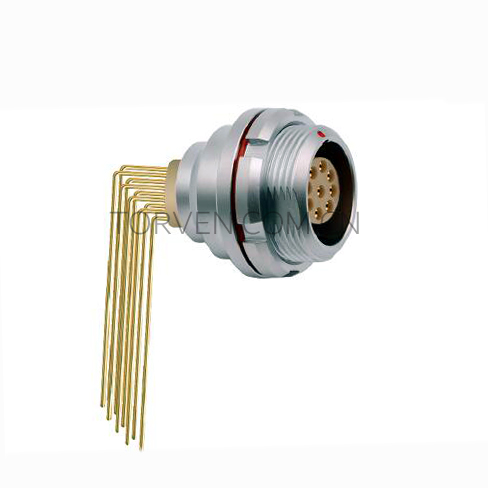

EEG-0(1)(2)(3)K-3xx-CLV Circular Fixed Socket Nut Fixing Connector

Fixed socket,nut fixing,PCB printing type 90°

No.of contacts:   2~30Pin


Locking type self-latching
Working temperature -55~+250°C
Shielding capability 75dB(10MHz), 40dB(1GHz)
Vibration 15g(10Hz-2000Hz)
Salt spray test 96Hrs
life cycle 5000
shock resistance 100g,60ms
IP grade IP66-68
Max humidity @60°,95%




Medical Electronics

Test and Laboratory,

Measurement Instrumentation

Data and Telecom Systems

Audio and Video Applications

Military and Aerospace

Industry Control
