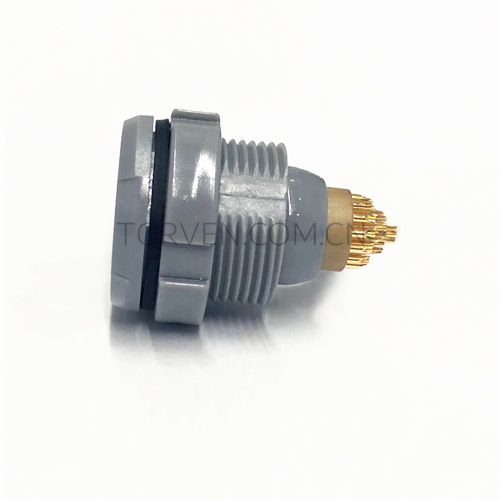

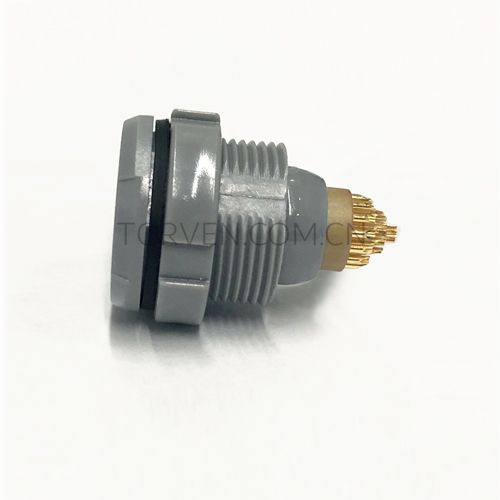

Fixed socket nut fixing 2P series,solder contact

● Security of the Push-Pull self-latching system
● Multi pole types 3,16,19,26pin
● Available in solder or print contacts
● High packing density for space savings
● Different color for plug cap and conical nuts to prevent mismatching
● Keying system for connector alignment
● Full plastic shell for standing high temperature

● Strain relief color:  Black, blue,grey,red,yellow,green

Housing material	PSU UL 94 V-0 ,Grey
Contact material	H59-1 phosphor bronze,gold plated
Insulator insert material	PPS, UL 94 V-0,natural
Plastic ring material	PSU UL 94V-0,Grey
Protection rate	IP65
Mechanical life	1000 cycles
Test Voltage	1200V AC
Insulation resistance	5000MΩ min.
Working temperature	-50~+125°C
