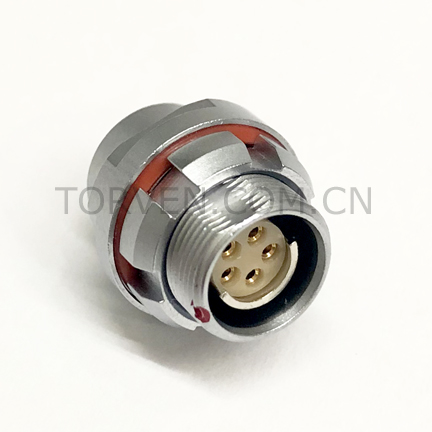

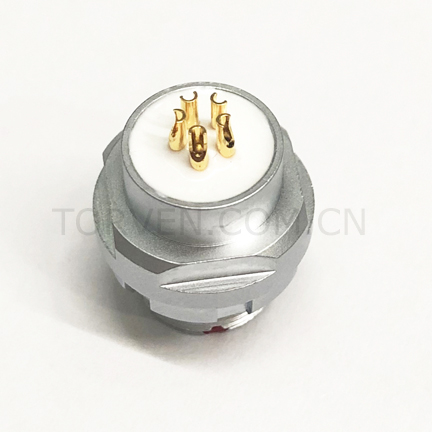

Fixed socket with slotted nut, solder type watertight, installation from rear of panel
Descriptions:
• Easy blind mating in difficult-to-reach places
• Less panel space required
• Robotic mating and demating possible
• Security of the push-pull self-latching system
• Security of push pull self latching system
• Keying with halfshells
• High packing density for space saving
• IP rating: IP50,IP68
• Multiple sizes
0F - 2,3,4,5,7,9 poles
1F - 2,3,4,5,6,7,8,10,12,14 poles
Applications:
Medical Electronics
Test and Laboratory,
Measurement Instrumentation
Data and Telecom Systems
Audio and Video Applications
Military and Aerospace
Industry Control
|
Locking type |
self latching |
|
Working temperature |
-55~+250°C |
|
Shielding capability |
75dB(10MHz), 40dB(1GHz) |
|
Vibration |
15g(10Hz-2000Hz) |
|
Salt sprat test |
96Hrs |
|
Life cycle |
5000 |
|
Shock resistance |
100g,60ms |
|
IP grade |
IP50, IP68 |
|
Max humidity |
@60° 95% |
