Torven HRS Series Miniature Round Metal Connector
Torven HRS miniature round metal connectors are ultra-compact micro circular interconnects developed for space-limited portable electronics, precision testing and mini industrial devices. Optimized miniature shell size delivers stable signal & low-power transmission while saving valuable panel space.
Key Mechanical & Locking Design
Compact one-piece nickel-plated metal housing with lightweight structure. Threaded locking design provides reliable anti-loosening performance under vibration, avoiding accidental disconnection during mobile operation.
Built-in polarization keying prevents mis-mating among same-size connectors, effectively protecting delicate circuit boards and internal contacts.
Reliable Electrical & Environmental Performance
- Tiny gold-plated beryllium copper contacts, ultra-low contact resistance, stable conduction for small signal transmission
- High-performance insulating insert resistant to high temperature and chemical corrosion
- Wide operating temperature range: -45°C ~ +125°C
- Excellent resistance to shock, vibration and mild salt spray, long service life over 3,000 mating cycles
- Optional full metal shielding structure for EMI/RFI suppression, suitable for weak signal collection equipment
- Fully RoHS & REACH compliant
Complete Configurations
Multiple shell sizes and pin layouts from 2 pins to 16 pins are available to match diverse wiring demands.
Rich mounting & termination options for flexible design-in:

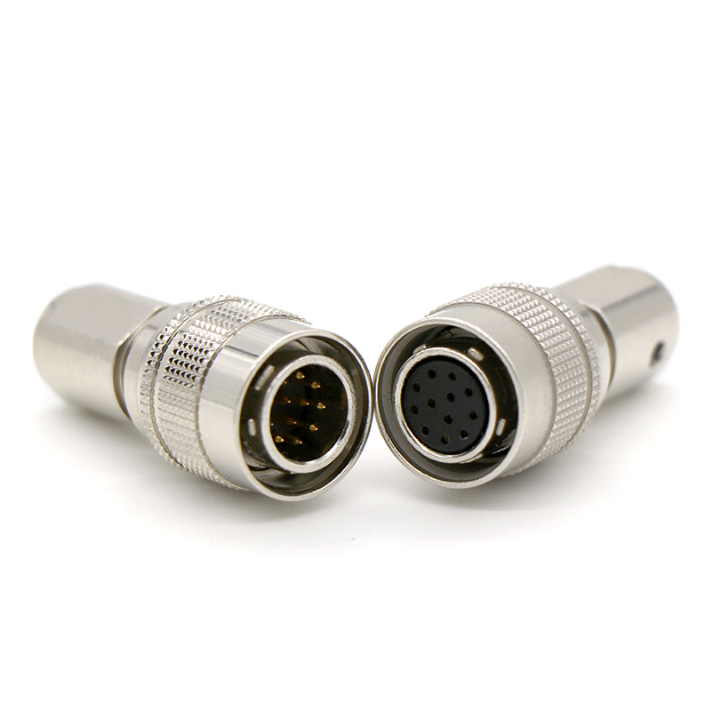

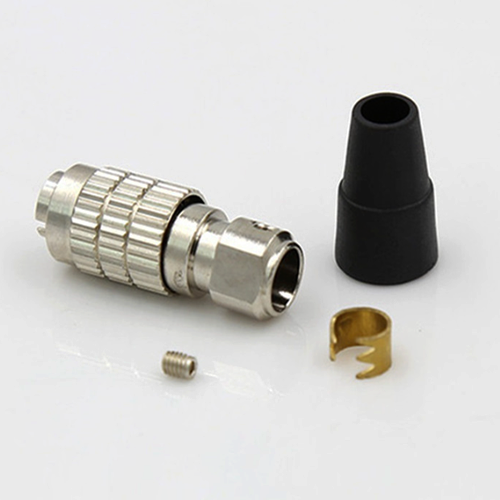

- Cable plugs: Straight type with customized strain relief for thin cables

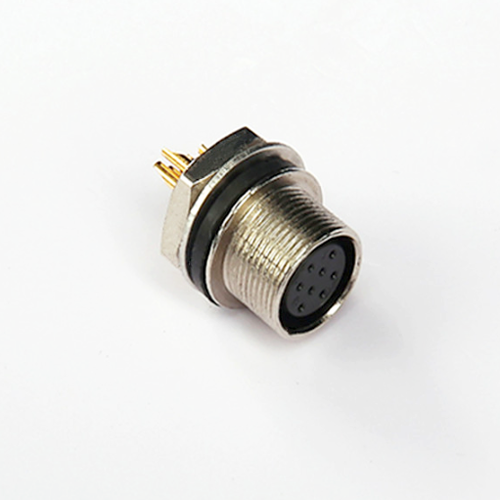

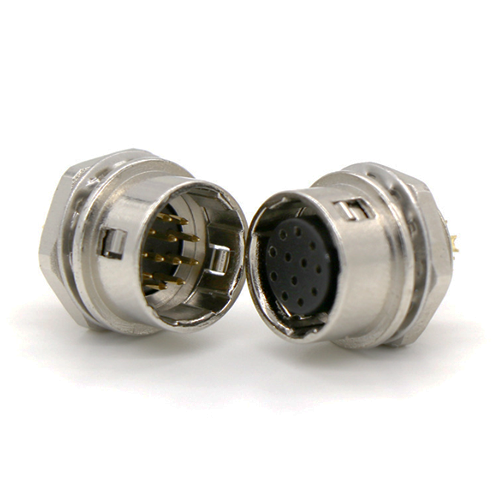

- Panel receptacles: Front flange mount, PCB vertical & right-angle solder pins
- Termination methods: Solder wire and PCB soldering
Main Application Scenarios
Portable measuring instruments, miniature medical sensors, wearable inspection devices, handheld testing equipment, miniature industrial cameras, tiny communication modules, lab precision analytical instruments.
Torven Product Advantages
- Ultra-small footprint, ideal for miniaturized equipment layout
- Precise dimensional consistency, interchangeable with mainstream HRS micro round connectors
- Support small-batch sample customization and finished cable harness processing
- Stable mass production capacity with cost-effective factory direct supply
