Model：	SP-ZH-7P
Connector type:	cable type
Frequency:	Low Frequency
Interface type:	Circular
IP grade:	IP67
Contact pin material:	Copper alloy gold plated
Number of contact :	7PIN
Application:	IoT

Product Description

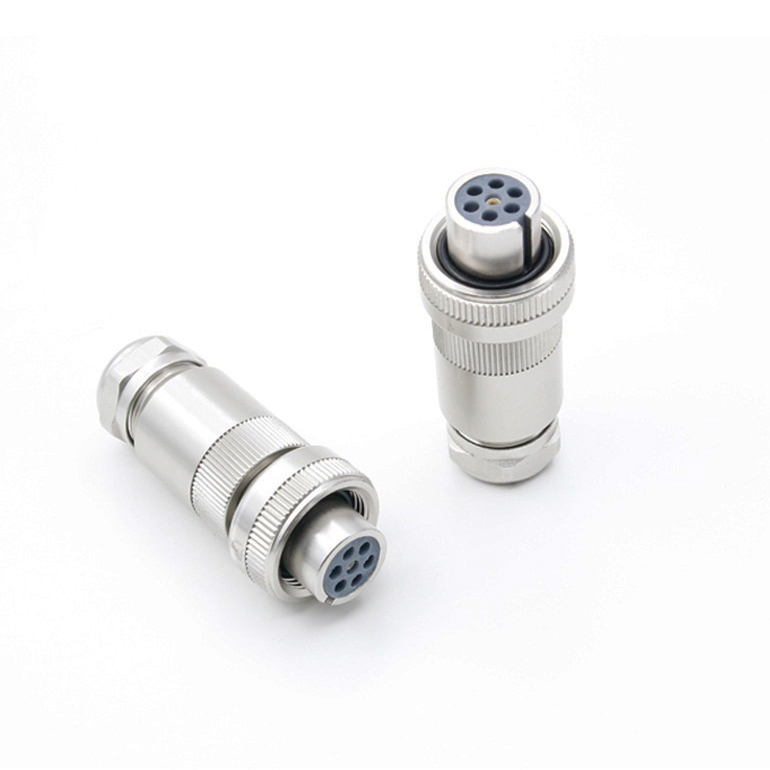

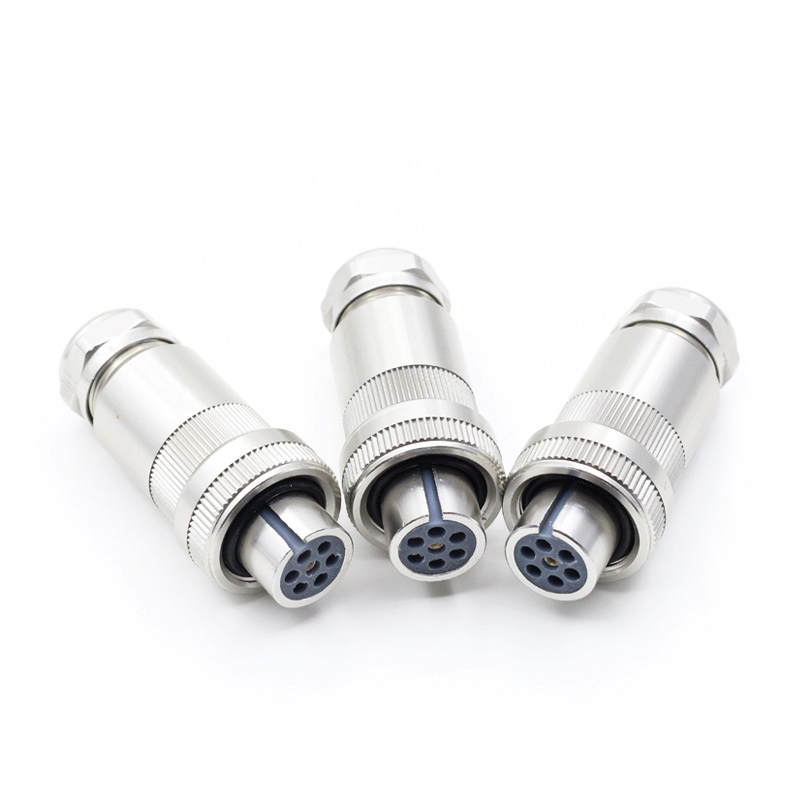

ITT Rexroth vickers Parker moog 7p metal connector

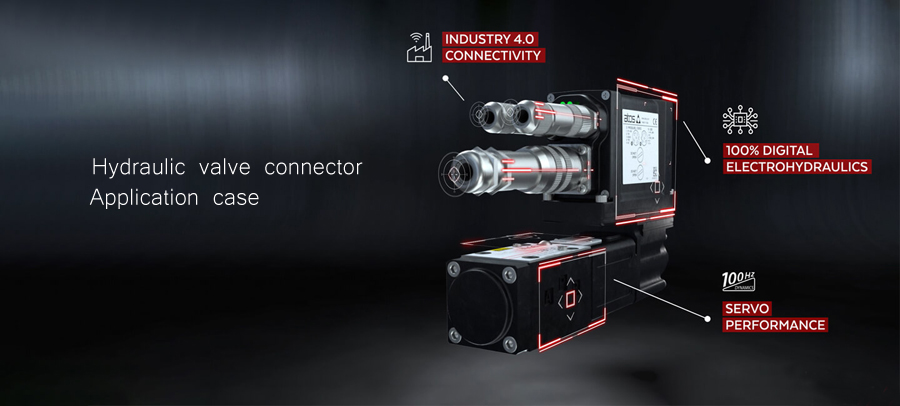

IP67 waterproof 7P metal connector full Compatible as ITT Cannon CA120001-92/Rexroth connector/Parker connector/Vickers connector and  Moog Connector.Its widly used in the proportional directional valves.
Plastic type:
Plug-in connector to Din EN175201-804
separete order under materials no.R900021267,For pin allocations
Metal type:
Plug-in connector to Din EN175201-804
separete oder under materials no.R900223890
7PIN Proportional Valve connector conform to Din EN175201-804 Standard,Equivalent to Atos,Rexroth,Moog,Vickers,Parker with reference part numbers as below:
Rexroh connector:R900021267,R900217845,R900223890
Moog connector:DB7007061
Parket connector:5004072
Vickers:694537(plastic type),934939(metal type)
ATOS Connector:
SP-336,SP-345,SP-664,SP-666(2),SP-667-24,
SP-667-110,SP-669-220,SP-669(2),SP-ZH-4P/M8,SP-ZH-4P,SP-ZH-5P,
SP-ZH-7P,SP-ZH-7P,SP-ZH-12P,SP-ZM-3P,SP-ZM-4P,SP-ZM-7P
