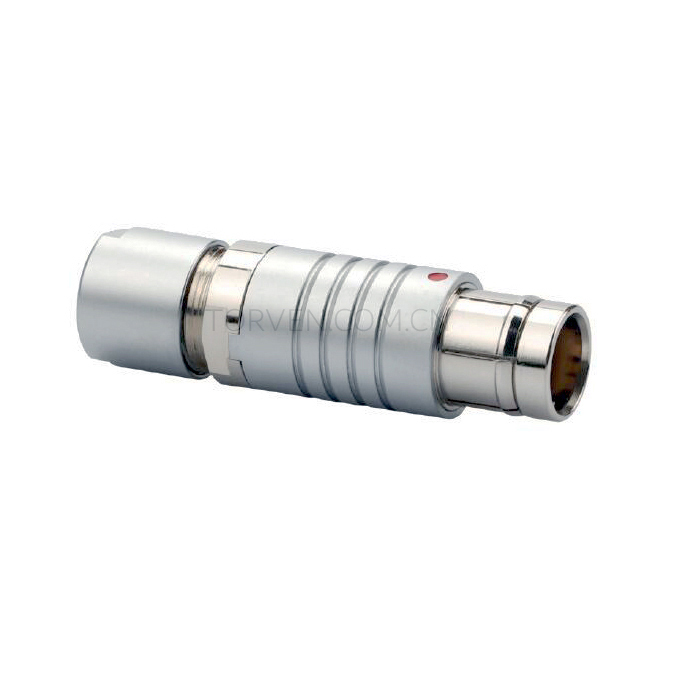

Straight plug cable collet with standard back nut.

Descriptions:

• Easy blind mating in difficult-to-reach places

• Less panel space required

• Robotic mating and demating possible
• Security of the push-pull self-latching system
• Security of push pull self latching system
• Keying with halfshells
• High packing density for space saving
• IP rating: IP50,IP68
• Multiple sizes
0F - 2,3,4,5,7 poles
1F - 2,3,4,5,6,7,12 poles

Locking type	self latching
Working temperature	-55~+250°C
Shielding capability	75dB(10MHz), 40dB(1GHz)
Vibration	15g(10Hz-2000Hz)
Salt sprat test	96Hrs
Life cycle	5000
Shock resistance	100g,60ms
IP grade	IP50, IP68
Max humidity	@60° 95%

Applications:

Medical Electronics

Test and Laboratory,

Measurement Instrumentation

Data and Telecom Systems

Audio and Video Applications

Military and Aerospace

Industry Control
